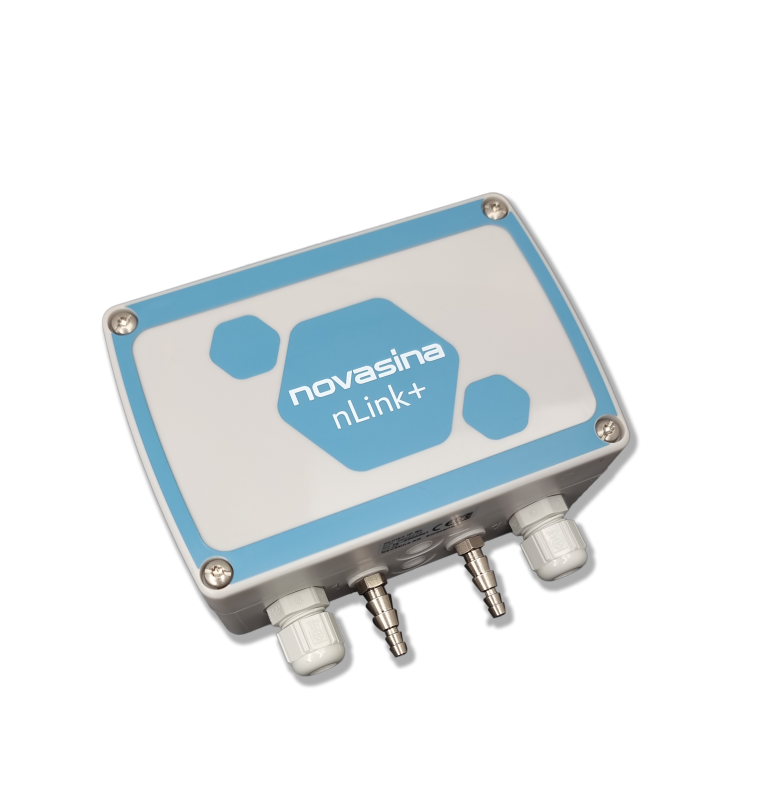

瑞士NOVASINA高精度微小壓差變送器，具有2個模擬信號輸出，用于連續測量，防護等級IP64。
根據不同型號可以訂購帶1個或2個差壓傳感器的微壓差變送器。
基于動態(質量流量)測量的雙向差壓傳感器，包括絕對壓力傳感器。
使用USB線配置Windows PC。
無需外部電源即可配置。
| 測量范圍 | 根據不同型號分成3個量程：±25 Pa/ ± 250Pa/ ± 5000Pa |
| 精度（20°C） | 3個量程分別對應的典型精度：±0.15Pa/±0.50Pa/±50Pa |
| 溫度影響 | Max. ±0.10Pa/±0.10Pa/±0.20Pa |
| 最大分辨率 | 0.1 Pa |
| 長期穩定性 | ±0.05%/ ±0.05% /±0.10% FSS (typ) |
| 流量 | <200ul/min |
| 環境壓力依賴性 | 內置abs壓力傳感器補償 |
| 環境壓力范圍 | 700 – 1260 hPa / mBar |
| 環境壓力精度 | ±0.5 hPa |
| 最大過壓 | 2 bar (破裂壓力4bar) 2 bar (破裂壓力4bar) 0.1 bar (破裂壓力0.3bar) |
| 供電 | 24V DC, 允許電壓范圍: 5 to 39V |
| 功耗 | <0.5W |
| 顯示 | 無 |
| LED指示燈 | 電源指示, nSens連接指示 |
| 輸出 | 2個可擴展模擬輸出, 電流 0/4..20mA 或 電壓 0/2..10V 精度<0.05% 量程 線性度<0.05% 量程 溫度影響 0.005% 量程 / °C 負載(I): 最小 0Ω / 最大500Ω 負載電阻 (U): 最小 10 kΩ / 最大 ∞Ω |
| 外殼材質 | 工程塑料 |
| 防護等級 | IP64 |
| 接線柱材質 | 無鉛(符合RoHS標準) |
| 工作溫度 | 0 to 50°C |
| 儲存溫度 | -10 to 60°C (不結露) |
| CE-/EMC | 安全性: EN 61010-1:2020 電磁兼容性: IEC 61000-6-2:2016, EN 61000-6-2:2019IEC 61000-6-3:2020, EN 61000-6-3:2007+A1:2011 |
DPT-Priima-MOD
High accuracy transmitter with Modbus communication and air flow measurement
DPT-Priima-MOD is a multifunctional high accuracy differential pressure transmitter with Modbus communication and air flow measurement. It is designed for cleanrooms and other demanding applications. DPT-Priima-MOD has a new, extremely accurate sensor and automatic zero point calibration, and optional calibration certificate.
The DPT-Priima-MOD is used for measuring differential pressure and air flow in building automation, HVAC and cleanroom systems. It can also be used with several different measurement probes such as FloXact
or pitot tube, and air dampers. The most common applications are pressure monitoring in cleanrooms and over the building envelope.
Technical details
| Communication: | RS-485 Modbus (RTU) |
| Accuracy (from applied pressure): | 0.4 % + ±0.4 Pa |
| Measuring ranges (Pa): | -120…+120 / -240…+240 / -620…+620 / -1240…+1240 / -2490…+2490 |
| Zero point calibration: | automatic with autozero element (-AZ), by pushbutton or via Modbus |
| Measuring units: | Pressure: Pa, kPa, mbar, inchWC, mmWC, psi Flow: m3/s, m3/h, cfm, l/s, m/s, ft/min |
| Supply voltage: | 24 VDC ±10 % / 24 VAC ±10 % |
| Power consumption: | < 1.0 W |
| Output signal: | via Modbus |
| Operating temperature: | -5…+50 °C |
| Response time: | 0.4–20 s |
| Protection standard: | IP54 |
