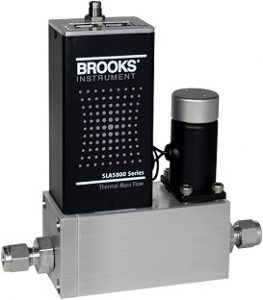

SLA5800 系列的特點是精度高、零點穩定性以及重復性高，而上述特性正是行業對質量流量測量和控制技術的需求所在。產品設計采用可配置多氣體/多量程功能，相較于競爭產品擁有好的零點漂移參數并且經確證能夠持久地保持出廠校準狀態和精度。
| 型號 | SLA5850 | SLA5860 | SLA5851 | SLA5861 | SLA5853 | SLA5863 |
| 產品類型 | Mass Flow Controller | Mass Flow Meter | Mass Flow Controller | Mass Flow Meter | Mass Flow Controller | Mass Flow Meter |
| 區別 | Device Type
Flow Range |
Device Type
Flow Range |
Device Type
Flow Range |
Device Type
Flow Range |
Device Type
Flow Range |
Device Type
Flow Range |
| 流量范圍-滿量程容量 | 0.003 – 50 slpm | 0.003 – 50 slpm | 15 – 200 slpm | 15 – 200 slpm | 100 – 2500 slpm | 100 – 2500 slpm |
| Z大壓力 | 1500 psi / 103 bar
Optional 4500 psi / 310 bar |
1500 psi / 103 bar
Optional: 4500 psi / 310 bar |
1500 psi / 103 bar | 1500 psi / 103 bar | 1000 psi / 70 bar | 1000 psi / 70 bar |
| 精度 | 0.9% S.P. (20-100% F.S.)
0.18% F.S. (2-20% F.S., 1-20% F.S. from 1-50 lpm) |
0.9% S.P. (20-100% F.S.)
0.18% F.S. (2-20% F.S., 1-20% F.S. from 1-50 lpm) |
0.9% S.P. (20-100% F.S.)
0.18% F.S. (2-20% F.S., 1-20% F.S. from 1-50 lpm) |
0.9% S.P. (20-100% F.S.)
0.18% F.S. (2-20% F.S., 1-20% F.S. from 1-50 lpm) |
100 – 2500 lpm: 0.9% S.P. (20-100% F.S.)
100 – 1100 lpm:?0.18% of F.S. (2-20% F.S.) 1100 – 2500 lpm: 1.0% of F.S. |
100 – 2500 lpm: 0.9% S.P. (20-100% F.S.)
100 – 1100 lpm:?0.18% of F.S. (2-20% F.S.) 1100 – 2500 lpm: 1.0% of F.S. |
| 重復性 | 0.20% S.P. | 0.20% S.P. | 0.20% S.P. | 0.20% S.P. | 0.20% S.P. | 0.20% S.P. |
| 響應時間-常閉 | <1 second | <1 second | <1 second | <1 seconds | <3 seconds | <3?seconds |
| 多氣體多量程 | Standard | Standard | Standard | Standard | Standard | Standard |
| 診斷能力 | Status Lights – MFC Health , Network Status
Alarms – Sensor Output, control Valve output, Over Temperature, Power Surge/Sag, Network Interruption Diagnostic/Service Port – RS485 via 2.5 mm jack |
Status Lights – MFC Health , Network Status
Alarms – Sensor Output, control Valve output, Over Temperature, Power Surge/Sag, Network Interruption Diagnostic/Service Port – RS485 via 2.5 mm jack |
Status Lights – MFC Health , Network Status
Alarms – Sensor Output, control Valve output, Over Temperature, Power Surge/Sag, Network Interruption Diagnostic/Service Port – RS485 via 2.5 mm jack |
Status Lights – MFC Health , Network Status
Alarms – Sensor Output, control Valve output, Over Temperature, Power Surge/Sag, Network Interruption Diagnostic/Service Port – RS485 via 2.5 mm jack |
Status Lights – MFC Health , Network Status
Alarms – Sensor Output, control Valve output, Over Temperature, Power Surge/Sag, Network Interruption Diagnostic/Service Port – RS485 via 2.5 mm jack |
Status Lights – MFC Health , Network Status
Alarms – Sensor Output, control Valve output, Over Temperature, Power Surge/Sag, Network Interruption Diagnostic/Service Port – RS485 via 2.5 mm jack |
| 模擬通訊 | 0-5 Vdc, 1-5 Vdc, 0-10 Vdc, 0-20 mA, 4-20 mA | 0-5 Vdc, 1-5 Vdc, 0-10 Vdc, 0-20 mA, 4-20 mA | 0-5 Vdc, 1-5 Vdc, 0-10 Vdc, 0-20 mA, 4-20 mA | 0-5 Vdc, 1-5 Vdc, 0-10 Vdc, 0-20 mA, 4-20 mA | 0-5 Vdc, 1-5 Vdc, 0-10 Vdc, 0-20 mA, 4-20 mA | 0-5 Vdc, 1-5 Vdc, 0-10 Vdc, 0-20 mA, 4-20 mA |
| 數字通訊 | DeviceNet™
EtherCAT? FOUNDATIONTMFieldbus Profibus? RS-485 |
DeviceNet™
EtherCAT? FOUNDATIONTMFieldbus Profibus? RS-485 |
DeviceNet™
EtherCAT? FOUNDATIONTMFieldbus Profibus? RS-485 |
DeviceNet™
EtherCAT? FOUNDATIONTMFieldbus Profibus? RS-485 |
DeviceNet™
EtherCAT? FOUNDATIONTMFieldbus Profibus? RS-485 |
DeviceNet™
EtherCAT? FOUNDATIONTMFieldbus Profibus? RS-485 |
